Elation CuePix 16

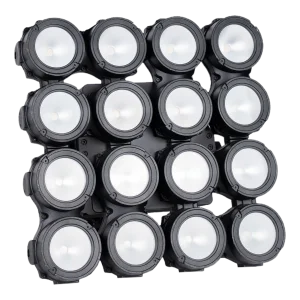

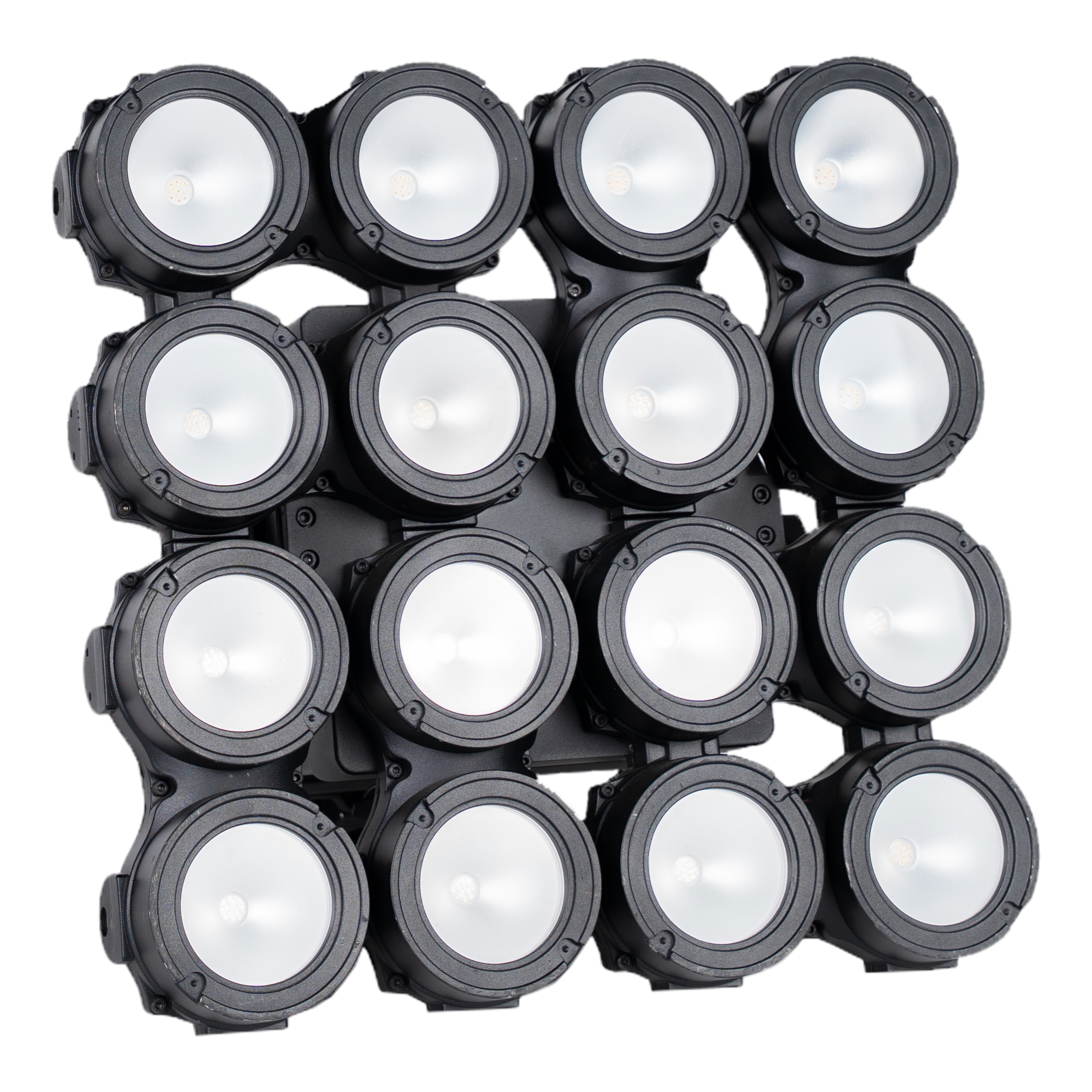

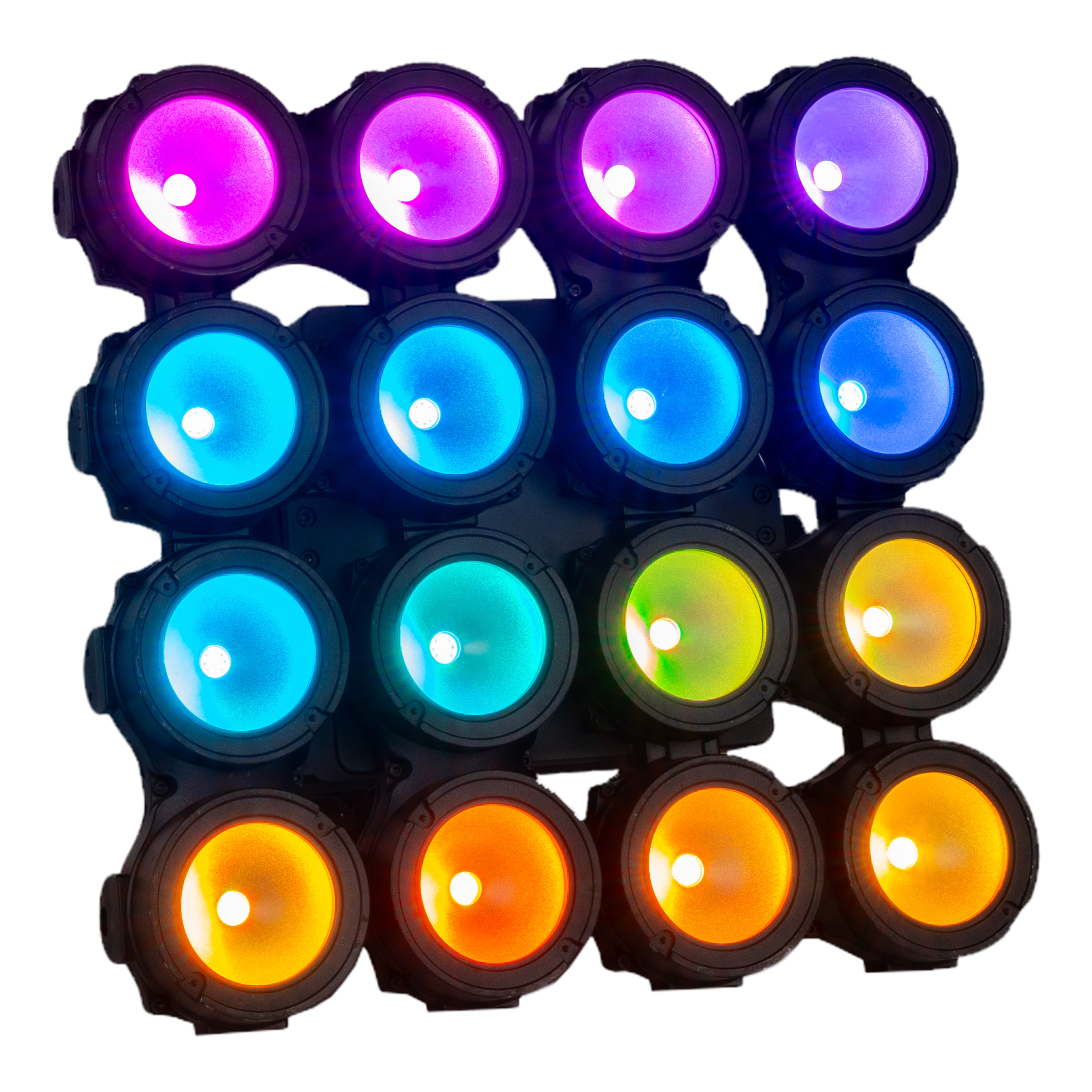

The CUEPIX 16IP™ is a versatile IP65 outdoor rated effect panel luminaire that features a 4×4 array of 16 30W 4-in-1 RGBA COB LEDs, 62° beam and 87° field angles, full pixel control and 5 pixel flip modes, RGB + Dynamic Amber modes, 16-bit dimming, variable dimming curve modes, high speed electronic shutter and strobe, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM! With 50,000-hour average LED life, each has individual controls over a full spectrum of customizable colors, from pastels to full saturation.

Building on the capabilities of the Cuepix Panel 5×5 LED array, launched five years ago, an amber LED joins the RGB diodes of the original design for a truer warm white CCT and extended color mixing possibiliites. Photometrics measure at 6,809-Lux 633 FC at 3.3′ (1m) and 757Lux 70FC at 9.8′ (3m). With 520W max power consumption, the lights are designed to be silent, uniform and flicker-free in a compact form factor at 33.0 lbs (15kg).
